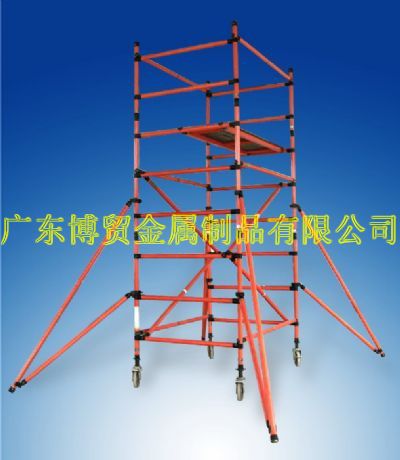

绝缘双宽玻璃纤维脚手架
特点:
绝缘、无火花、无锈蚀、无氧化。
220kv刀闸检修架适用于易爆发爆炸、燃烧、漏电、腐化的事情情况。
适用于35KV、60KV、110KV、220KV的高压电器系统的抢修。
台面规格:
1.35m(宽)×2.0m(长)
1.35m(宽)×2.5m(长)
1.45m(宽)×2.0m(长)
1.45m(宽)×2.5m(长)
宁静载荷:
每层平台宁静承载:225kg
整架宁静承载:720kg
事情高度:
事情高度可达20
规格技术参数:
规格型号 | 平台高度 | 平台尺寸 | 规格型号 | 平台高度 | 平台尺寸 |
BMAJSZ-141A/JY | 1.41m | 2m×1.35m | BMAJSZ-884A/JY | 8.84m | 2m×1.35m |
BMAJSZ-141B/JY | 2.5m×1.35m | BMAJSZ-884B/JY | 2.5m×1.35m | ||
BMAJSZ-141C/JY | 2m×1.45m | BMAJSZ-884C/JY | 2m×1.45m | ||
BMAJSZ-141D/JY | 2.5m×1.45m | BMAJSZ-884D/JY | 2.5m×1.45m | ||
BMAJSZ-188A/JY | 1.88m | 2m×1.35m | BMAJSZ-930A/JY | 9.30m | 2m×1.35m |
BMAJSZ-188B/JY | 2.5m×1.35m | BMAJSZ-930B/JY | 2.5m×1.35m | ||
BMAJSZ-188C/JY | 2m×1.45m | BMAJSZ-930C/JY | 2m×1.45m | ||
BMAJSZ-188D/JY | 2.5m×1.45m | BMAJSZ-930D/JY | 2.5m×1.45m | ||
BMAJSZ-234A/JY | 2.34m | 2m×1.35m | BMAJSZ-977A/JY | 9.77m | 2m×1.35m |
BMAJSZ-234B/JY | 2.5m×1.35m | BMAJSZ-977B/JY | 2.5m×1.35m | ||
BMAJSZ-234C/JY | 2m×1.45m | BMAJSZ-977C/JY | 2m×1.45m | ||
BMAJSZ-234D/JY | 2.5m×1.45m | BMAJSZ-977D/JY | 2.5m×1.45m | ||
BMAJSZ-281A/JY | 2.81m | 2m×1.35m | BMAJSZ-1023A/JY | 10.23m | 2m×1.35m |
BMAJSZ-281B/JY | 2.5m×1.35m | BMAJSZ-1023B/JY | 2.5m×1.35m | ||
BMAJSZ-281C/JY | 2m×1.45m | BMAJSZ-1023C/JY | 2m×1.45m | ||
BMAJSZ-281D/JY | 2.5m×1.45m | BMAJSZ-1023D/JY | 2.5m×1.45m | ||
BMAJSZ-327A/JY | 3.27m | 2m×1.35m | BMAJSZ-1069A/JY | 10.69m | 2m×1.35m |
BMAJSZ-327B/JY | 2.5m×1.35m | BMAJSZ-1069B/JY | 2.5m×1.35m | ||
BMAJSZ-327C/JY | 2m×1.45m | BMAJSZ-1069C/JY | 2m×1.45m | ||
BMAJSZ-327D/JY | 2.5m×1.45m | BMAJSZ-1069D/JY | 2.5m×1.45m | ||
BMAJSZ-373A/JY | 3.73m | 2m×1.35m | BMAJSZ-1116A/JY | 11.16m | 2m×1.35m |
BMAJSZ-373B/JY | 2.5m×1.35m | BMAJSZ-1116B/JY | 2.5m×1.35m | ||
BMAJSZ-373C/JY | 2m×1.45m | BMAJSZ-1116C/JY | 2m×1.45m | ||
BMAJSZ-373D/JY | 2.5m×1.45m | BMAJSZ-1116D/JY | 2.5m×1.45m | ||
BMAJSZ-420A/JY | 4.20m | 2m×1.35m | BMAJSZ-1162A/JY | 11.62m | 2m×1.35m |
BMAJSZ-420B/JY | 2.5m×1.35m | BMAJSZ-1162B/JY | 2.5m×1.35m | ||
BMAJSZ-420C/JY | 2m×1.45m | BMAJSZ-1162C/JY | 2m×1.45m | ||
BMAJSZ-420D/JY | 2.5m×1.45m | BMAJSZ-1162D/JY | 2.5m×1.45m | ||
BMAJSZ-466A/JY | 4.66m | 2m×1.35m | BMAJSZ-1209A/JY | 12.09m | 2m×1.35m |
BMAJSZ-466B/JY | 2.5m×1.35m | BMAJSZ-1209B/JY | 2.5m×1.35m | ||
BMAJSZ-466C/JY | 2m×1.45m | BMAJSZ-1209C/JY | 2m×1.45m | ||
BMAJSZ-466D/JY | 2.5m×1.45m | BMAJSZ-1209D/JY | 2.5m×1.45m | ||
BMAJSZ-513A/JY | 5.13m | 2m×1.35m | BMAJSZ-1255A/JY | 12.55m | 2m×1.35m |
BMAJSZ-513B/JY | 2.5m×1.35m | BMAJSZ-1255B/JY | 2.5m×1.35m | ||
BMAJSZ-513C/JY | 2m×1.45m | BMAJSZ-1255C/JY | 2m×1.45m | ||
BMAJSZ-513D/JY | 2.5m×1.45m | BMAJSZ-1255D/JY | 2.5m×1.45m | ||
BMAJSZ-559A/JY | 5.59m | 2m×1.35m | BMAJSZ-1301A/JY | 13.01m | 2m×1.35m |
BMAJSZ-559B/JY | 2.5m×1.35m | BMAJSZ-1301B/JY | 2.5m×1.35m | ||
BMAJSZ-559C/JY | 2m×1.45m | BMAJSZ-1301C/JY | 2m×1.45m | ||
BMAJSZ-559D/JY | 2.5m×1.45m | BMAJSZ-1301D/JY | 2.5m×1.45m | ||
BMAJSZ-605A/JY | 6.05m | 2m×1.35m | BMAJSZ-1348A/JY | 13.48m | 2m×1.35m |
BMAJSZ-605B/JY | 2.5m×1.35m | BMAJSZ-1348B/JY | 2.5m×1.35m | ||
BMAJSZ-605C/JY | 2m×1.45m | BMAJSZ-1348C/JY | 2m×1.45m | ||
BMAJSZ-605D/JY | 2.5m×1.45m | BMAJSZ-1348D/JY | 2.5m×1.45m | ||
BMAJSZ-652A/JY | 6.52m | 2m×1.35m | BMAJSZ-1394A/JY | 13.94m | 2m×1.35m |
BMAJSZ-652B/JY | 2.5m×1.35m | BMAJSZ-1394B/JY | 2.5m×1.35m | ||
BMAJSZ-652C/JY | 2m×1.45m | BMAJSZ-1394C/JY | 2m×1.45m | ||
BMAJSZ-652D/JY | 2.5m×1.45m | BMAJSZ-1394D/JY | 2.5m×1.45m | ||
BMAJSZ-698A/JY | 6.98m | 2m×1.35m | BMAJSZ-1441A/JY | 14.41m | 2m×1.35m |
BMAJSZ-698B/JY | 2.5m×1.35m | BMAJSZ-1441B/JY | 2.5m×1.35m | ||
BMAJSZ-698C/JY | 2m×1.45m | BMAJSZ-1441C/JY | 2m×1.45m | ||
BMAJSZ-698D/JY | 2.5m×1.45m | BMAJSZ-1441D/JY | 2.5m×1.45m | ||
BMAJSZ-745A/JY | 7.45m | 2m×1.35m | BMAJSZ-1487A/JY | 14.87m | 2m×1.35m |
BMAJSZ-745B/JY | 2.5m×1.35m | BMAJSZ-1487B/JY | 2.5m×1.35m | ||
BMAJSZ-745C/JY | 2m×1.45m | BMAJSZ-1487C/JY | 2m×1.45m | ||
BMAJSZ-745D/JY | 2.5m×1.45m | BMAJSZ-1487D/JY | 2.5m×1.45m | ||
BMAJSZ-791A/JY | 7.91m | 2m×1.35m | BMAJSZ-1533A/JY | 15.33m | 2m×1.35m |
BMAJSZ-791B/JY | 2.5m×1.35m | BMAJSZ-1533B/JY | 2.5m×1.35m | ||
BMAJSZ-791C/JY | 2m×1.45m | BMAJSZ-1533C/JY | 2m×1.45m | ||
BMAJSZ-791D/JY | 2.5m×1.45m | BMAJSZ-1533D/JY | 2.5m×1.45m | ||
BMAJSZ-837A/JY | 8.37m | 2m×1.35m | BMAJSZ-1580A/JY | 15.80m | 2m×1.35m |
BMAJSZ-837B/JY | 2.5m×1.35m | BMAJSZ-1580B/JY | 2.5m×1.35m | ||
BMAJSZ-837C/JY | 2m×1.45m | BMAJSZ-1580C/JY | 2m×1.45m | ||
BMAJSZ-837D/JY | 2.5m×1.45m | BMAJSZ-1580D/JY | 2.5m×1.45m |
